OnLogic IGN800 is an business edge gateway according to the Raspberry Pi CM4 module pre-loaded with the Ignition Edge HMI, SCADA (Supervisory Regulate And Information Acquisition), MES, and IIoT instrument platform from Inductive Automation.

The {hardware} isn’t precisely new, because the Onlogic IGN800 is solely the OnLogic Issue 201 business PC presented previous this 12 months, however that ships with Ignition Edge as a way to supply a cheap resolution for automation tasks.

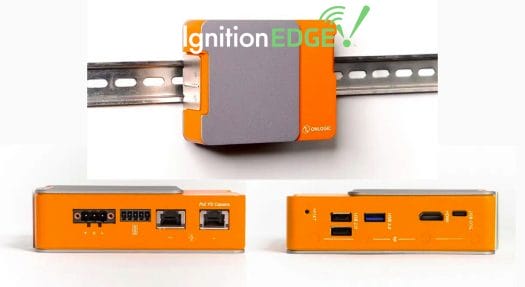

OnLogic IGN800 Ignition Edge Software

OnLogic IGN800 specs:

  • SoM – Raspberry Pi CM4 with Broadcom BCM2711 quad-core Arm Cortex-A72 processor @ as much as 1.5 GHz, as much as 8GB LPDDR4 RAM, as much as 32GB eMMC flash
  • Further garage – Not obligatory M.2 SATA SSD (See Enlargement segment)
  • Video Output – HDMI port as much as 4Kp60
  • Networking
    • 2x Gigabit Ethernet LAN (Not obligatory PoE PD Enter) by the use of Realtek RTL8153 controller
    • Not obligatory WiFi/Bluetooth module on Raspberry Pi CM4 module + 3x antenna holes
    • Not obligatory 4G LTE wi-fi module by the use of M.2 socket
  • USB – 1x USB 3.2 Gen 1 port, 2x USB 2.0 ports, 1x USB-C control port
  • Serial – 5-pin terminal block with RS-232/422/485
  • Enlargement
    • 1x M.2 3042/3052 B-key socket (USB 3.0)
    • 1x M.2 2280 B-key socket (SATA)
  • Misc – Reset button
  • Energy Provide
    • 8~24 VDC by the use of 3-pin terminal block
    • Not obligatory PoE PD 802.3at
  • Dimensions (WxHxD) – 102.5 x 129 x 38 mm (Aluminum enclosure)
  • Temperature Vary – -20° ~ 60°C
  • Humidity – 10% – 95% (non-condensing)



Ignition Edge Software
Ignition Edge Dashboard

Together with the Ignition Edge instrument, the IGN800 lets in customers to gather and analyze their information on the edge and “consolidate disparate techniques right into a customizable dashboard”. Some standard use instances come with tracking and controlling amenities, grids, or whole municipal infrastructures.

The Ignition IGN800 begins at $449.50 with a Raspberry Pi CM4 SoM provided with 4GB RAM and no eMMC flash, plus a 64GB M.2 SATA SSD, or virtually $100 further in comparison to an Onlogic Issue 201 business PC with the similar {hardware} configuration as a way to pay for the Ignition Edge license that generally begins at $200 if bought one after the other. People and academic establishments too can use the Ignition Maker Version totally free on a Raspberry Pi or different {hardware}, so long as it’s for private tasks or schooling handiest, and no longer for industrial endeavors.

The Ignition IGN800 arm pc is able to dealing with as much as 20,000 real-time tags, and in case your software calls for extra efficiency, OnLogic additionally introduced the Intel Celeron J3455-based IGN610 that may procedure as much as 66,573 real-time tags, and the IGN210 with an Atom x6000E Elkhart Lake processor that may maintain as much as 192,380 real-time tags.
