Chipsee AIO-CM4-156 – A fifteen.6-inch commercial All-in-One pc with Raspberry Pi CM4

Chipsee AIO-CM4-156 – A fifteen.6-inch commercial All-in-One pc with Raspberry Pi CM4

Chipsee AIO-CM4-156 is an commercial All-in-One pc powered by means of a Raspberry Pi CM4 module and provided with a fifteen.6-inch capacitive touchscreen show with 1920×1080 answer.

The brand new panel PC builds upon the sooner AIO-CM4-101 type with a ten.1-inch touchscreen show and but even so the bigger and better answer 15.6-inch Complete HD show, it additionally provides improve for an non-compulsory 250GB Sandisk NVMe SSD and a 2mm protecting “armoplated” Glass. Since so far as I do know, “armoplated” isn’t a phrase, they are going to seek advice from armored/toughened glass as a substitute.

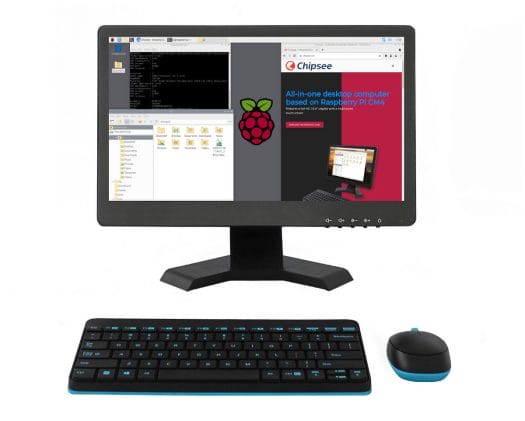

15.6-inch industrial all-in-one computer raspberry pi cm4

AIO-CM4-156 specs:

  • SoM – Raspberry Pi CM4 with Broadcom BCM2711 quad-core Cortex-A72 processor at 1.5 GHz, as much as 8GB RAM, as much as 32GB eMMC flash
  • Garage
    • MicroSD card slot for boot (simplest used with CM4 Lite)
    • M.2 NVMe socket for an non-compulsory 250GB SSD power
  • Show – 15.6-inch IPS LCD with 1920×1080 answer, non-compulsory 10-point capacitive touchscreen, 250 cd/m2 brightness, 2mm protecting armored glass
  • Video Output – HDMI 2.0 port
  • Digicam – Not obligatory front-facing digicam
  • Audio – 2W interior stereo speaker, 3.5mm audio out jack
  • Connectivity
    • Gigabit Ethernet port
    • Not obligatory WiFi & Bluetooth on CM4 module
  • USB – 2x USB 3.0 Host ports, 1x USB Sort-C OTG connector
  • Enlargement – 40-pin Raspberry Pi HAT header
  • Misc – RTC; Energy, quantity, and brightness buttons
  • Energy Provide – 12V DC by the use of DC jack
  • Energy Intake – 8.4 Watts conventional
  • Temperature Vary – 0°C to +50°C
  • Dimensions
    • With stand: 374 x 303 x 123 mm
    • With out stand: 374 x 238 x 33 mm
    • Word: Fortify 75x75mm VESA mounts
  • Weight – 1.6kg
  • Certifications – CE, ROHS

Raspberry Pi CM4 carrier NVMe SSDThe corporate has additionally made every other {hardware} adjustments together with the addition of an HDMI output port, USB ports at the moment are model 3.0 as a substitute of two.0, and as a substitute of the usage of proprietary I/O headers, they only went with the normal 40-pin Raspberry Pi GPIO header that allows the usage of Raspberry Pi HAT enlargement forums. Chipsee says the all-in-one pc is totally suitable with Raspberry Pi OS (Debian), and likewise lists Ubuntu and Android 11, however maximum working programs for Raspberry Pi must paintings as smartly. Extra technical main points will also be discovered at the documentation web page.

CM4 AIO PC Raspberry Pi HAT Adapter
AIO-CM4-156 ships with a Raspberry Pi HAT adapter

I used to be simplest knowledgeable concerning the pc lately, but it surely’s been round for some time having been introduced in July 2021.

Chipsee AIO-CM4-156 commercial All-in-One pc will also be bought at the corporate’s on-line retailer in addition to Mouser for $364 and up. Word that the fee is with out the capactive contact serve as, however features a Raspberry Pi CM4 Lite module with 2GB RAM, WiFi & Bluetooth, and the OS choices are somewhat atypical: Debian 10 or Android 11. There’s additionally an way to get a CM4 with a 16GB eMMC flash for $5 extra, whilst the 250GB Sandisk NVMe SSD provides $60, and so is the capacitive touchscreen.

Due to theguyuk for the end.
